Colloid Mill

Introduction:

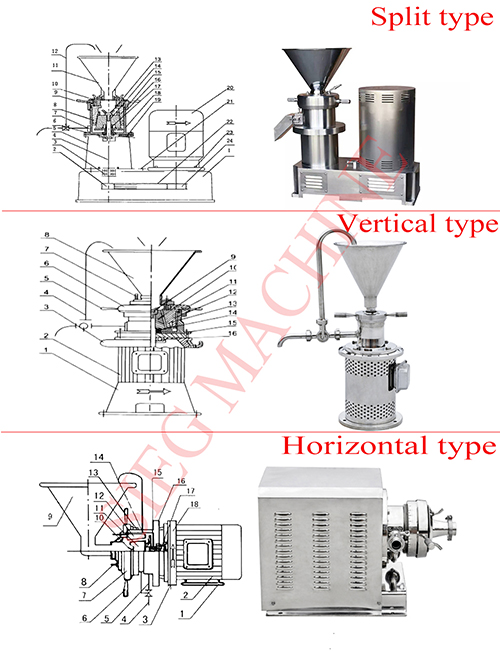

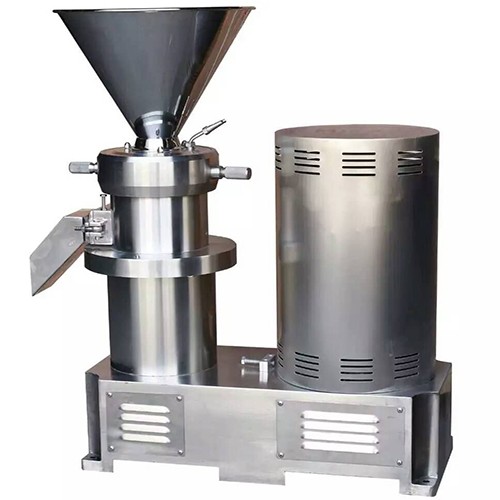

CLM series colloid mill consists of three types: horizontal, vertical and split type. Colloid mills are especially good at grinding semi-fluid materials with large particles.When the material passes through the gap between fixed and rotary teeth (the size of the gap is adjustable), it is subjected to strong shear, friction, high-frequency vibration and other physical effects, so that the material is effectively emulsified, dispersed, homogenized and crushed.

Working Principle:

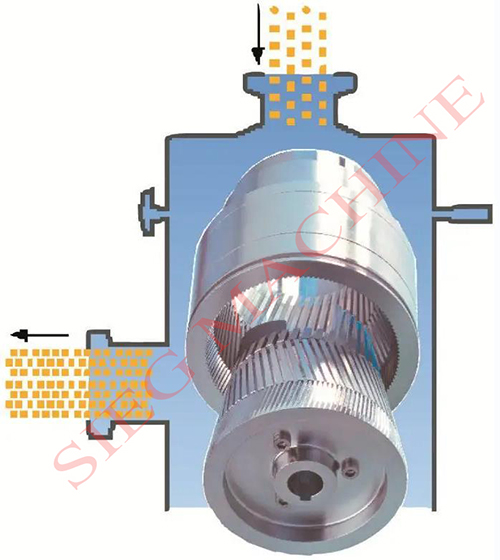

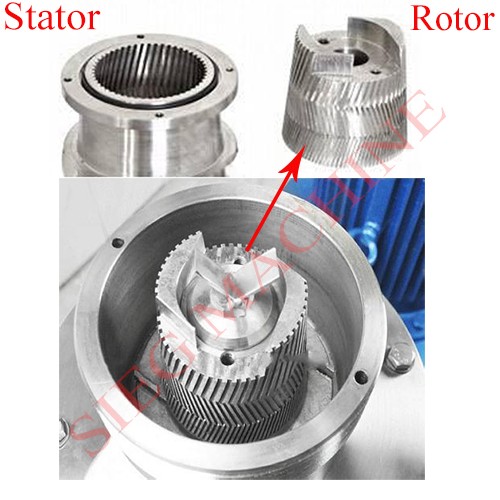

The grinding parts of colloid mill are composed of a group of high precision toothed grinding discs and static grinding discs which are matched with each other,and it is also called rotor and stator.

 When the equipment is running, the stator does not move, but the rotor is driven by a motor and runs at high speed. It means that the rotor and stator keep relatively high speed movement, which produce strong shear force and grinding effect, so as to make the semi-fluid and fluid materials quickly achieve dissolution, dispersion, homogenization, emulsification, suspension and other excellent mixing effects.

Main Features:

• Food and pharmaceuticals grade is available


• It is customized to add hopper,cart,square discharge port,circulation pipeline and valves

• High precision rotor and stator ,the gap can be adjusted in the range of 0.1-5mm,designed fineness 2-40 micron

• Motor speed control by frequency conversion,small current impact

• Rotor and stator with special treatment, highly corrosion and wear resistance (service life over 200,000 tons)

• Jacket for cooling,cooling pipeline diameter is 12mm

Application:

• Food industry:(sesame, ice cream, aloe, cake filler, cream, bean paste, pollen broken wall, fruit tea, jam, fruit juice, pineapple, soybean, peanut milk, protein milk, soy milk, bean paste, dairy products, various beverages, malted milk, emulsified chicken bone mud, other animal skin, emulsified pig skin and essence, etc.)


• Chemical industry:(emulsified asphalt, lubricating oil, grease, paint, detergent, pigments, dyes, plastics, coatings, FRP, petroleum catalyst, diesel oil, adhesives, leather,biochemical industry, etc.)

• Chemical industry for daily use:(senior cosmetics, shoe polish, detergent, toothpaste, soap, shampoo, bath essence, facial mask, balsam, etc.)

• Pharmaceutical industry:(various types of Chinese patent medicine, biological products, royal jelly, syrup, nutrient solution, cod liver oil, all kinds of oral liquid, ointment, all kinds of ointment, pollen, static drops, vaccines, injections, animal husbandry medicine, pancreatic enzyme preparation, emulsion, etc.)

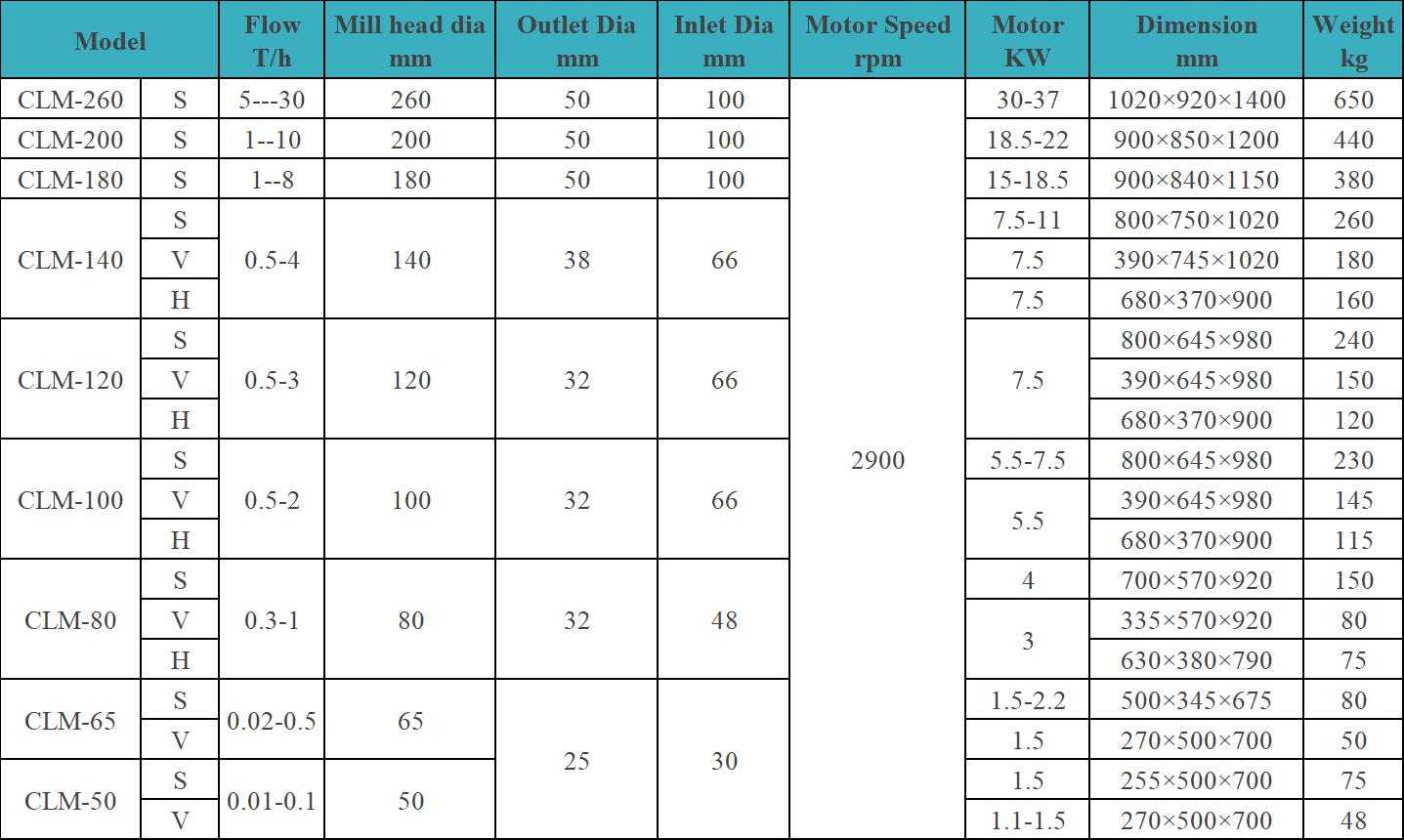

Technical Specification:

Note:

1.CLM-65 and CLM-50 can be equipped with single-phase motor. All motors above 3KW are three-phase motors.

2.SIEGMA reserves the right to change the product specifications without prior notice.

3.Capacity and fineness vary according to different material properties ,just for reference

4.S for split type; V for vertical type; H for hozrizontal type.
